Key Specifications and Ratings

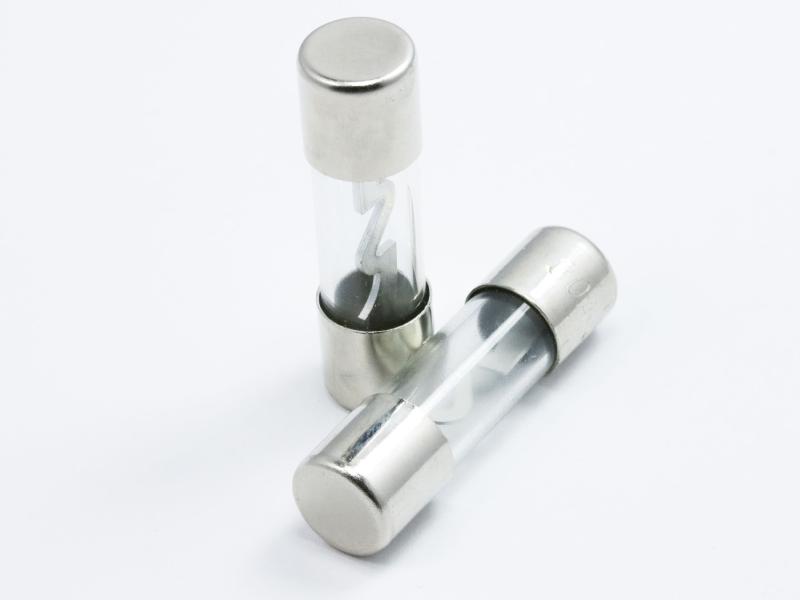

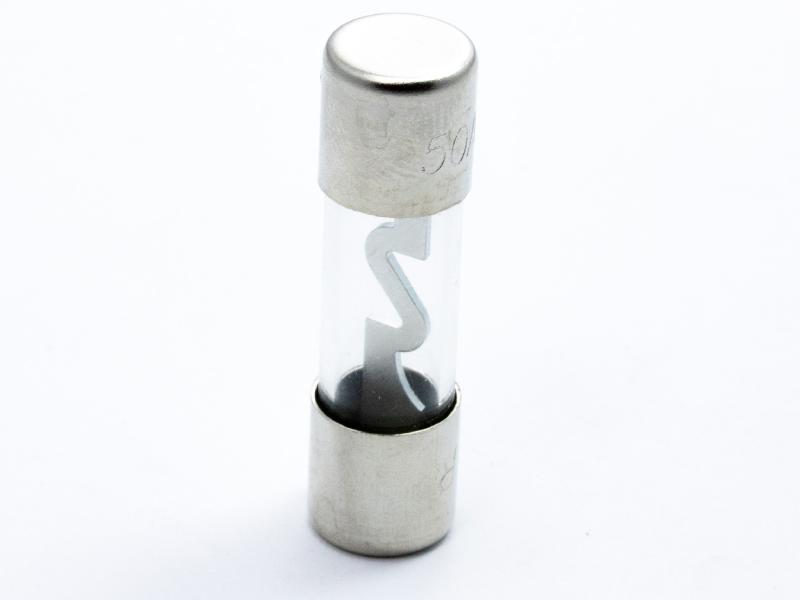

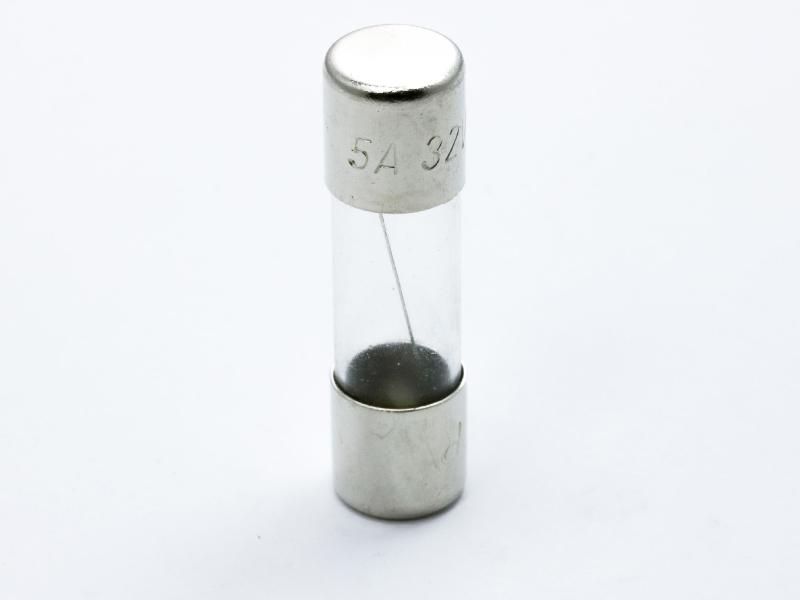

5AG (13/32" x 1 1/2")Fast actingNickel plated terminalsRetail Pack Quantity: 2PCS
Voltage Rating32VAC 32VDC
Current Rating500mA to 80A
Interrupt Rating1000A AC 1000A DC
Features and Application
- General purpose fuse, available in 32V and 125V ratings.
- Built of glass and with a fast acting design to open immediately during overcurrent events.
- 13/32" x 1 1/2" (sometimes called 5AG) fuse. The fuse size is constant for all amperage ratings, making it easy to replace the fuse in a one-size-fits-all fuse holder.
- NEW: Select products are available in pill boxes and attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
UL File
Dimensions and 3D view
Dimensions
Length0.4
Height1.5
Width0.4
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.4
Height1.5
Width0.4
UnitInch
Accessories and Mounting Devices
Use it with
PMG-DS-01-Q2S
Current Rating30A
Voltage Rating600VAC
PMG-KB-01-Q2S
Current Rating30A
Voltage Rating600VAC
PMG-KB-02-Q2S
Current Rating30A
Voltage Rating600VAC
