Key Specifications and Ratings

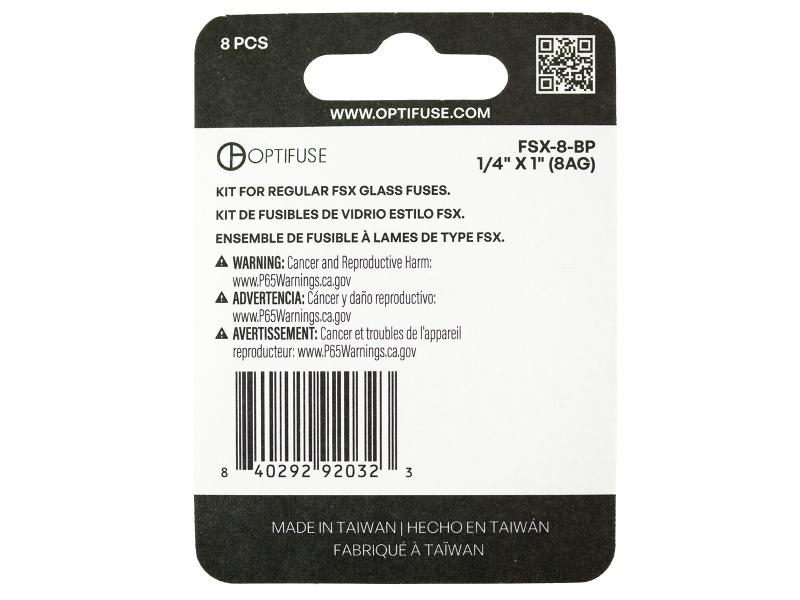

8 piece assortment packIncludes (1 - 5 & 8) amp fusesIncludes (2 - 20, 25 & 30) amp fusesAssortment Pack Quantity: 8PCS
Voltage Rating250VAC
Current Rating5A to 30A
Interrupt Rating10000A AC
Features and Application
- General purpose fuse, available in 32V and 125V ratings.
- Built of glass and with a fast acting design to open immediately during overcurrent events.
- 1/4" x 1" (sometimes called 8AG) fuse. The fuse size is constant for all amperage ratings, making it easy to replace the fuse in a one-size-fits-all fuse holder.
UL File
Dimensions and 3D view
Dimensions
Length2.75
Height3.74
Width0.6
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.75
Height3.74
Width0.6
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
