Key Specifications and Ratings
MCASE styleColor coded to amp ratingsSpace-saving compact sizeRetail Pack Quantity: 1PC
Voltage Rating58VDC
Current Rating15A to 40A
Interrupt Rating 1000A DC
Features and Application

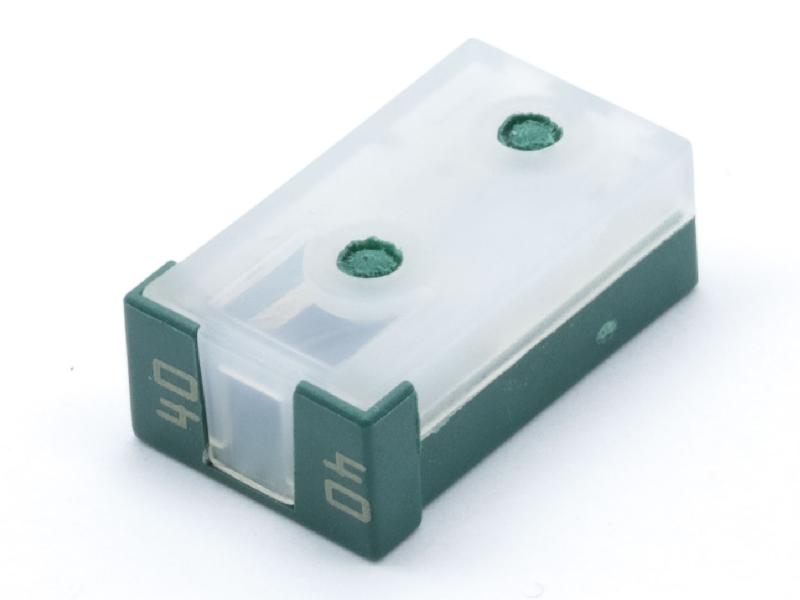

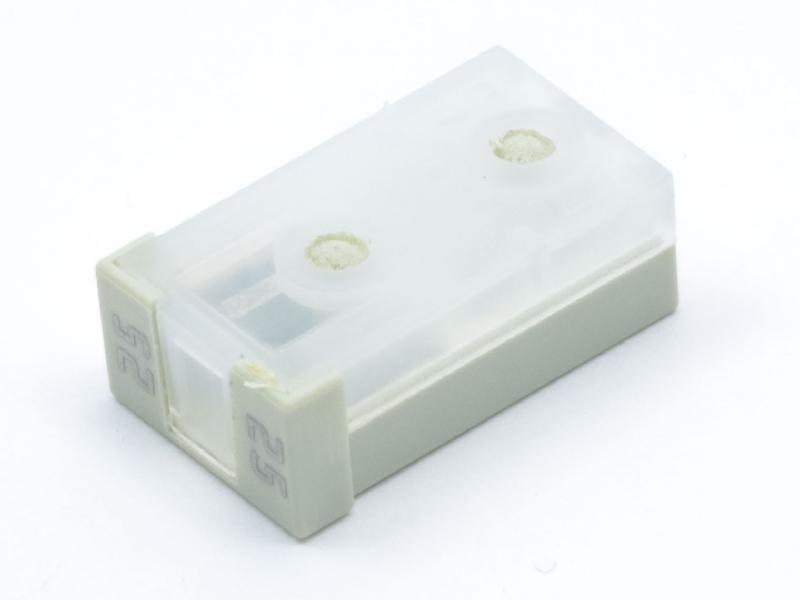

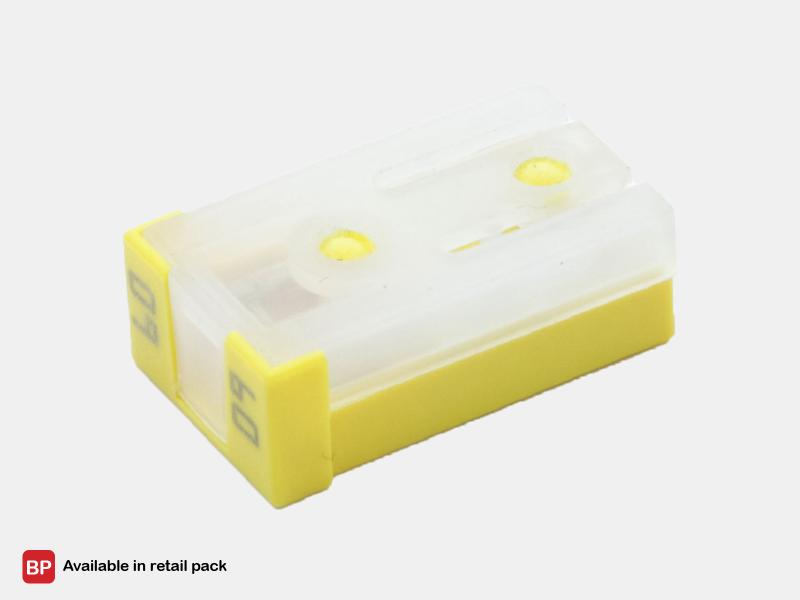

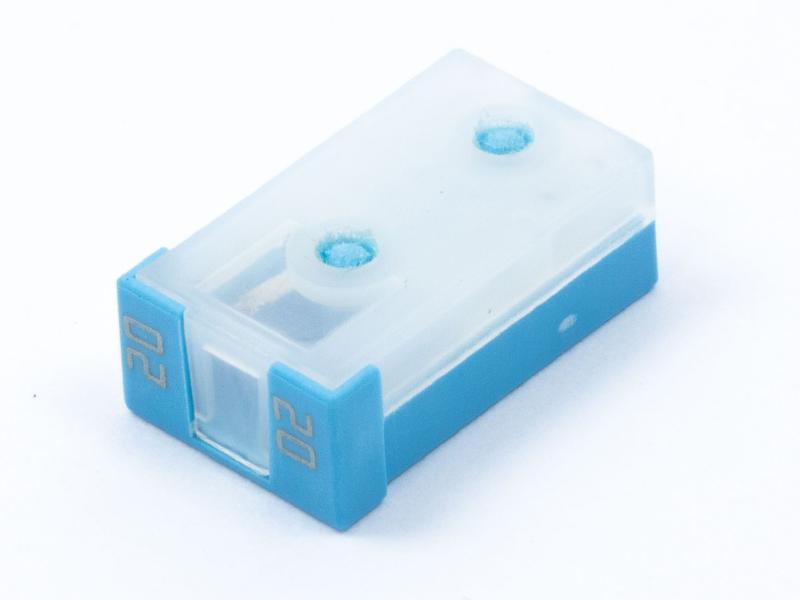

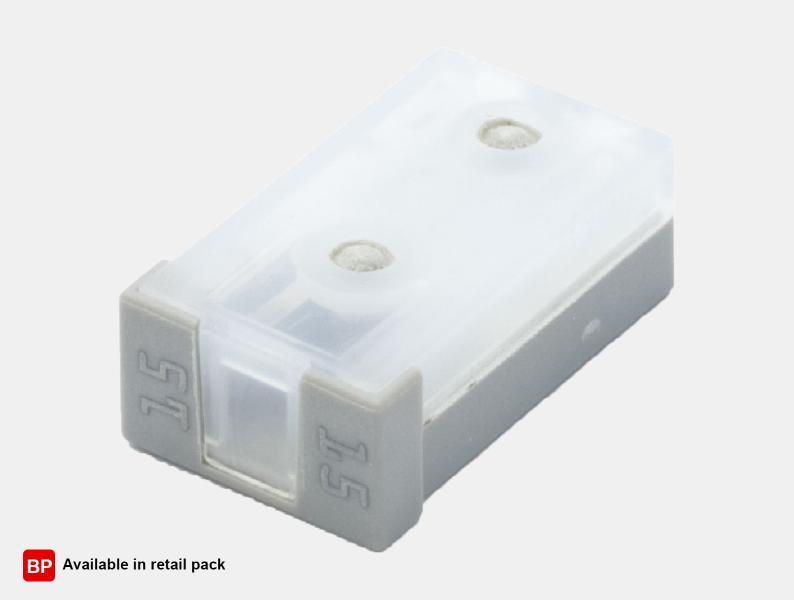

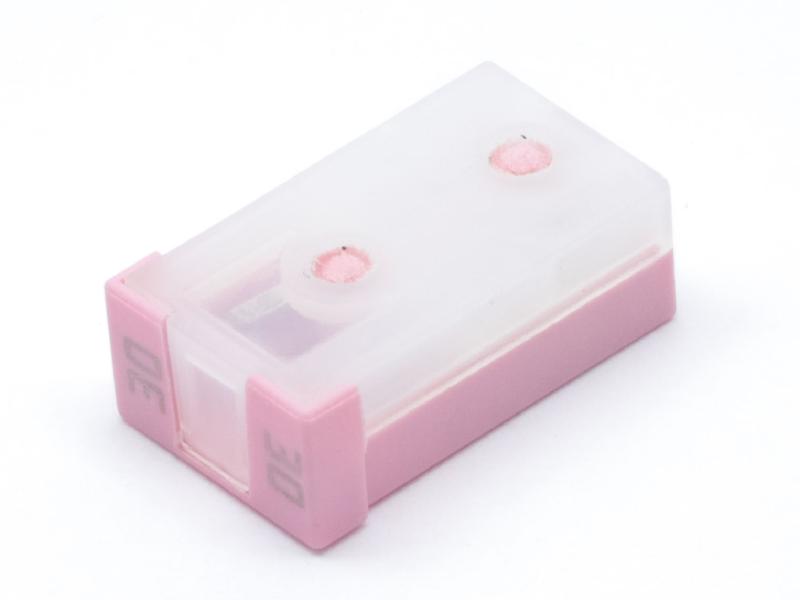

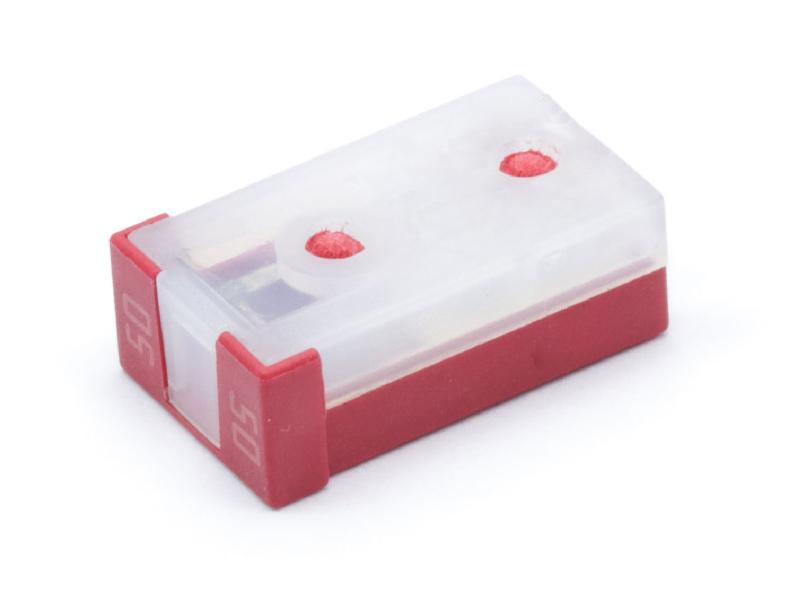

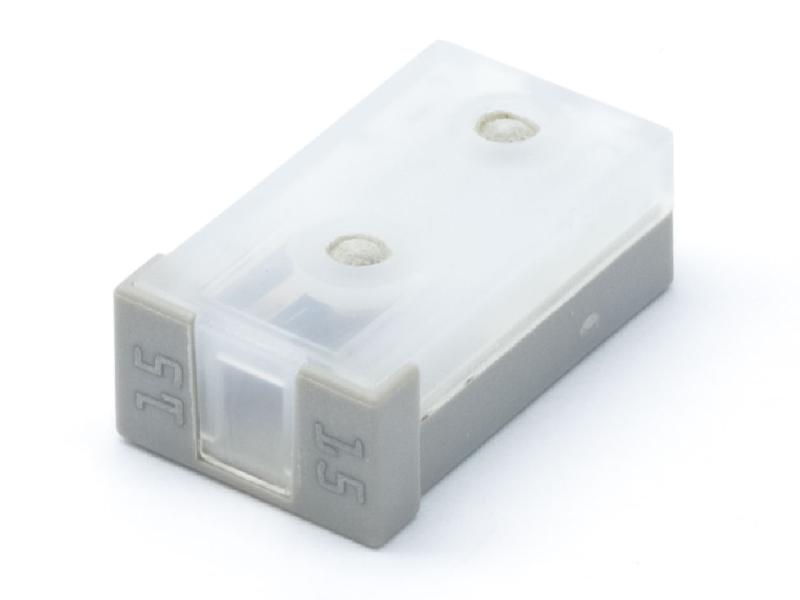

- Female cartridge fuse designed for heavy-duty loads associated with the increasing power needs of the automotive industry.
- Miniaturized footprint, with similar a height and width as MICRO style blade fuses, this fuse is designed to fit into small spaces while handling inrush currents and is mated with 2.8mm male terminals.

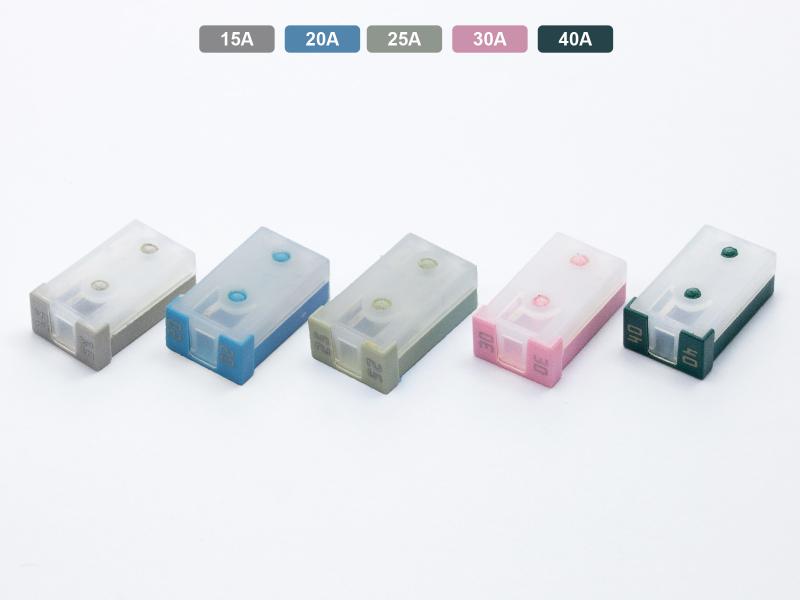

- Designed with industry-standard color coding for easy amperage identification and with a clear window on top for quick blown fuse identification.

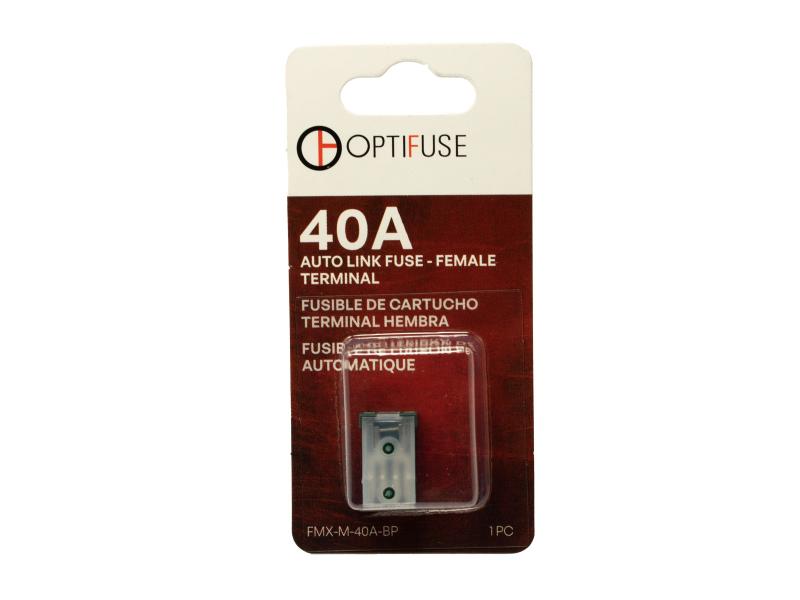

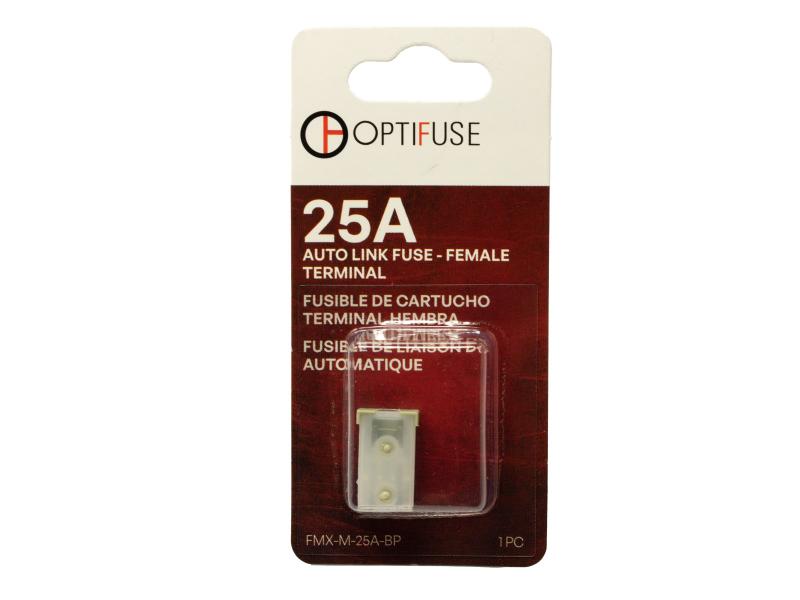

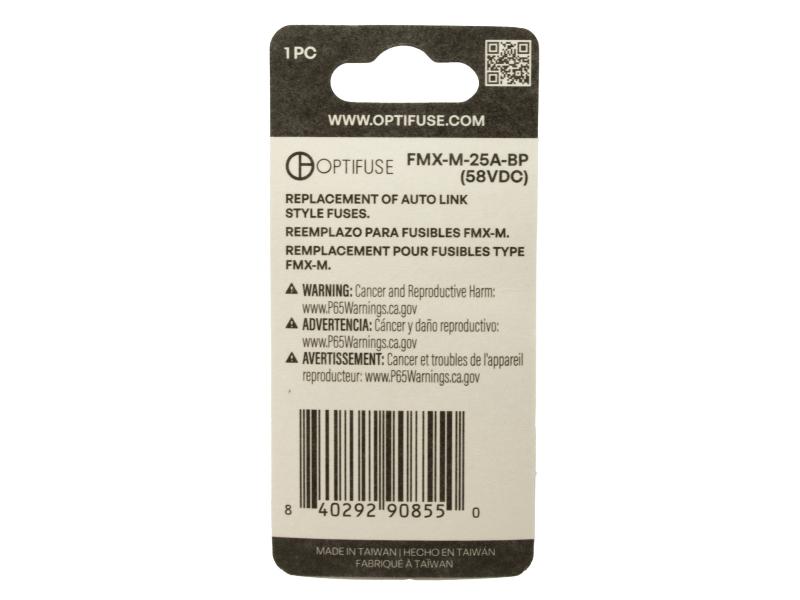

- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.42
Height0.24
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.42
Height0.24
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
