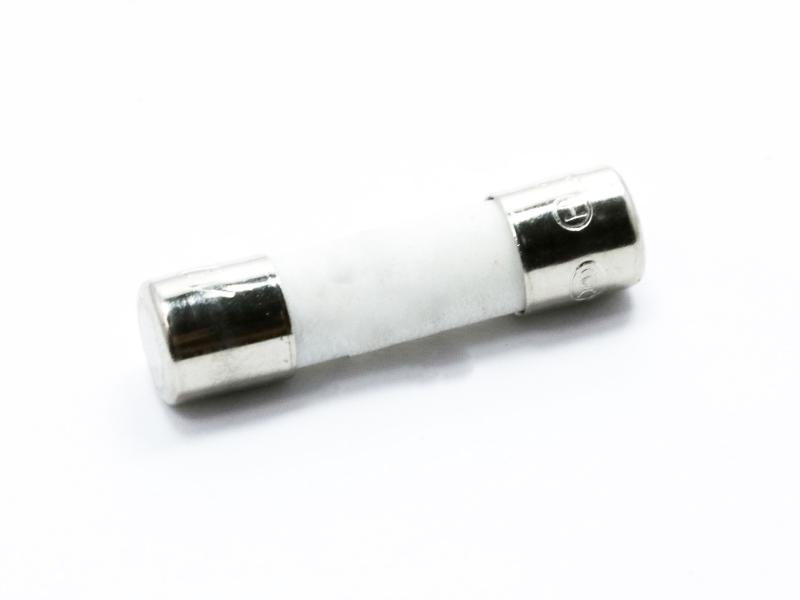

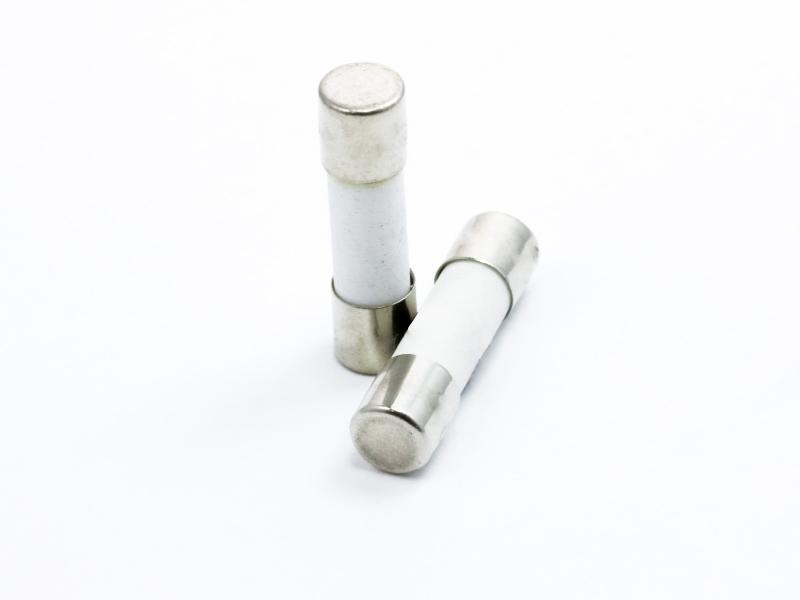

TCD / TCD-P


TCD / TCD-P

Ceramic - 5 x 20 mm (IEC) - Time Lag
RoHS certification image
REACH certification image
Key Specifications and Ratings
5 x 20 mm (IEC)Time lagCeramic fuse
Voltage Rating250VAC
Current Rating200mA to 16A
Interrupt Rating1500A AC
Features and Application

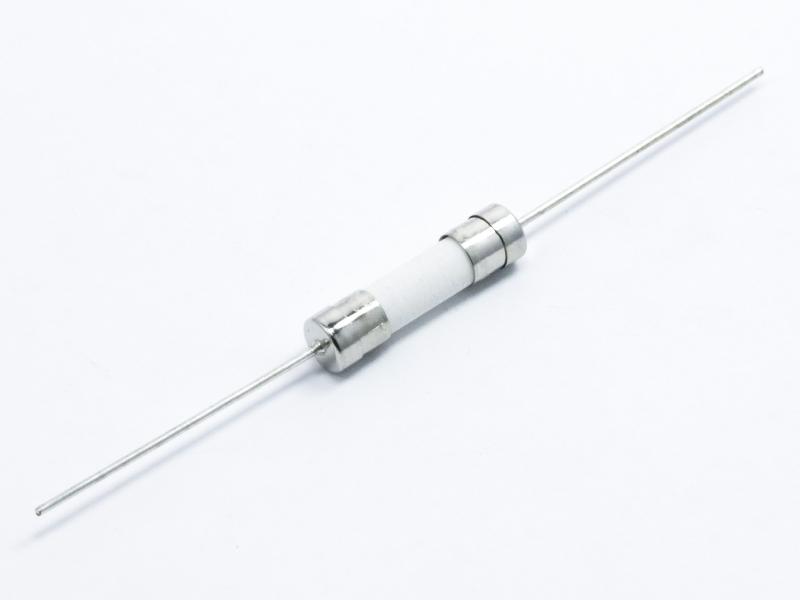

  • 20mm long and 5mm in diameter, this fuse is time lag with a ceramic body and is designed to meet European IEC standards (as well as being UL Recognized). Available with or without axial leads
  • Time lag fuses are commonly used in applications where high but harmless inrush currents are needed for brief periods, such as with alternators. This fuse prevents nuisance tripping and opens only when an overcurrent sustains in a circuit.
  • Well suited for applications where high currents may occur due to the strong nature of the ceramic material.
Dimensions and 3D view
Dimensions
Length0.2
Height0.79
Width0.2
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.2
Height0.79
Width0.2
UnitInch
