Key Specifications and Ratings
Designed to meet IECTime lagShort leads
Voltage Rating250VAC 125VDC
Current Rating100mA to 10A
Interrupt Rating130A AC 130A DC
Features and Application

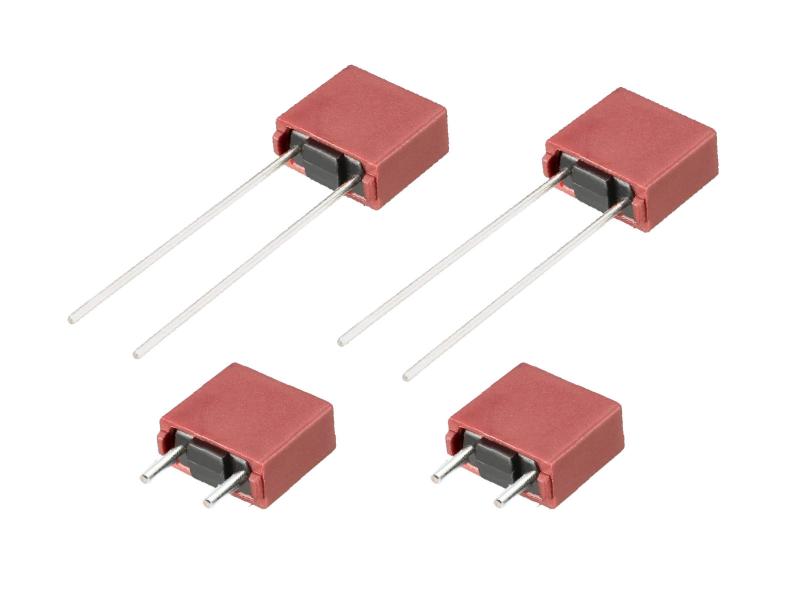

- Time lag, rectangular-bodied fuse designed to save space and meet European IEC standards.

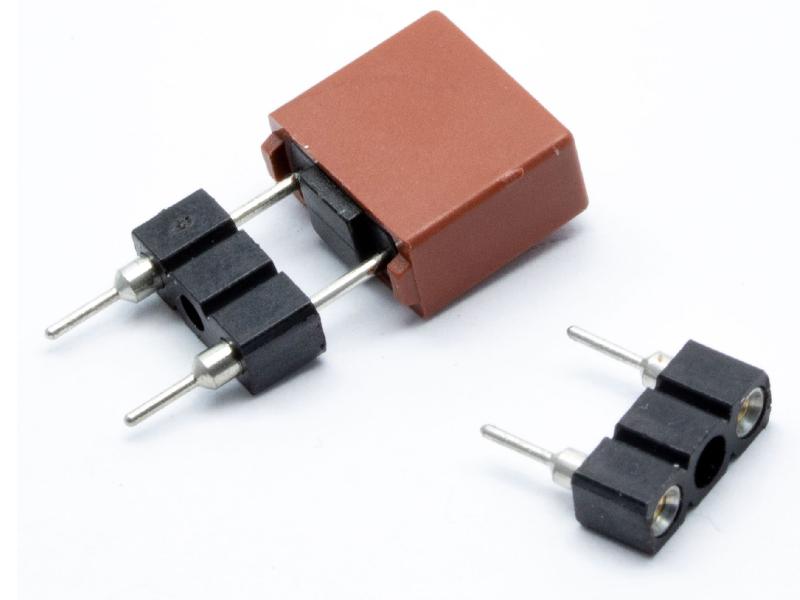

- Radial leaded fuse (only a 0.2" spacing lead-to-lead) that can be mounted in a special fuse holder that allows for field replacement of the fuse.
- This fuse does not need to be directly soldered onto a PCB, meaning it can be readily replaced if there is a problem.
Dimensions and 3D view
Dimensions
Length0.33
Height0.79
Width0.1
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.33
Height0.79
Width0.1
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
