Key Specifications and Ratings

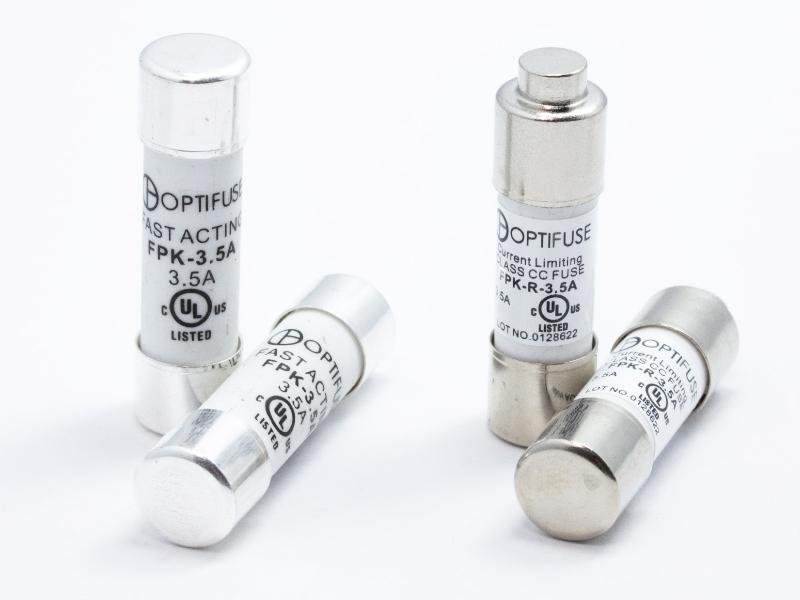

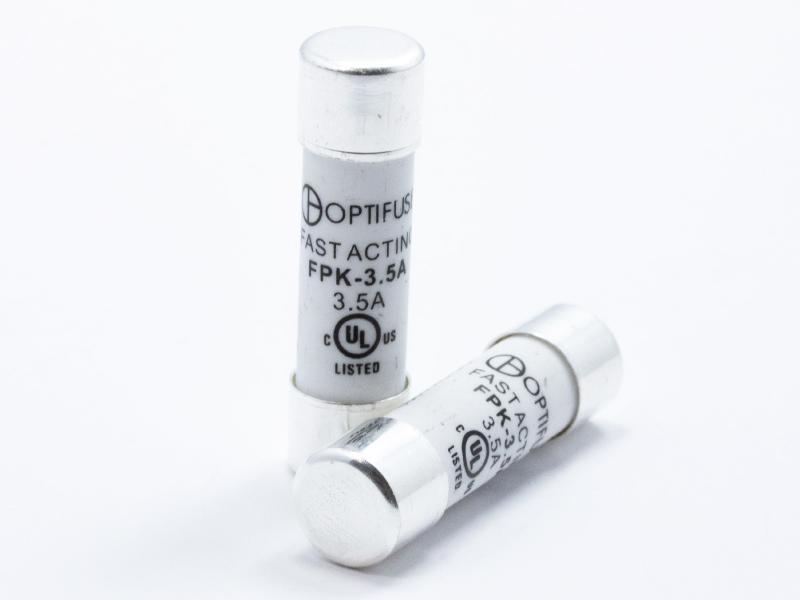

Midget fuse - 10 x 38 mmSupplementary circuit protectionFast actingRetail Pack Quantity: 1PC
Voltage Rating600VAC 600VDC
Current Rating1A to 30A
Interrupt Rating100000A AC 10000A DC
Features and Application
- UL listed Midget fuses offer supplementary overcurrent protection (UL 248–14) in equipment that has branch circuit protection already installed upstream in the circuit, while providing a high interrupting capacity in a low-profile industry standard 10 x 38mm size.
- FPK fast acting fuse is commonly used for supllementary protection in control panels, lighting circuits, and other general circuits.
- It is rated at 600VAC / 600VDC with a 100K amp AC interrupting capacity and 10K amp DC interrupting capacity. Current ratings range from 1A to 30A.

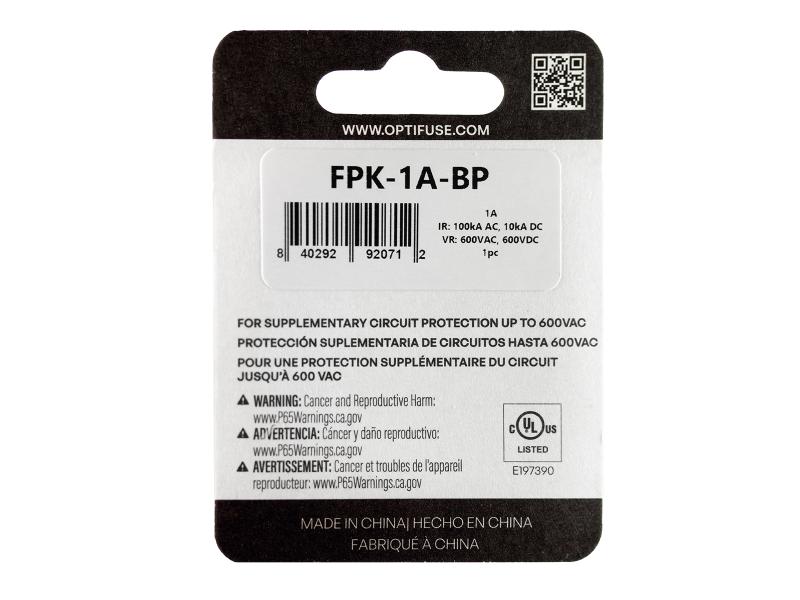

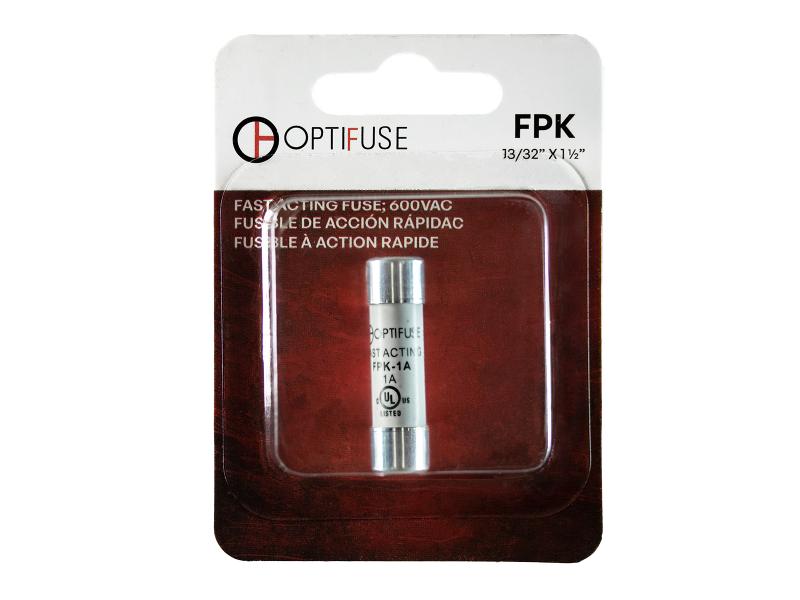

- NEW: Select products are available in attractive retail packaging.
UL File
Dimensions and 3D view
Dimensions
Length0.41
Height1.5
Width0.41
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.41
Height1.5
Width0.41
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
PMG-DS-01-Q2S
Current Rating30A
Voltage Rating600VAC
PMG-KB-01-Q2S
Current Rating30A
Voltage Rating600VAC
PMG-KB-02-Q2S
Current Rating30A
Voltage Rating600VAC
