Key Specifications and Ratings

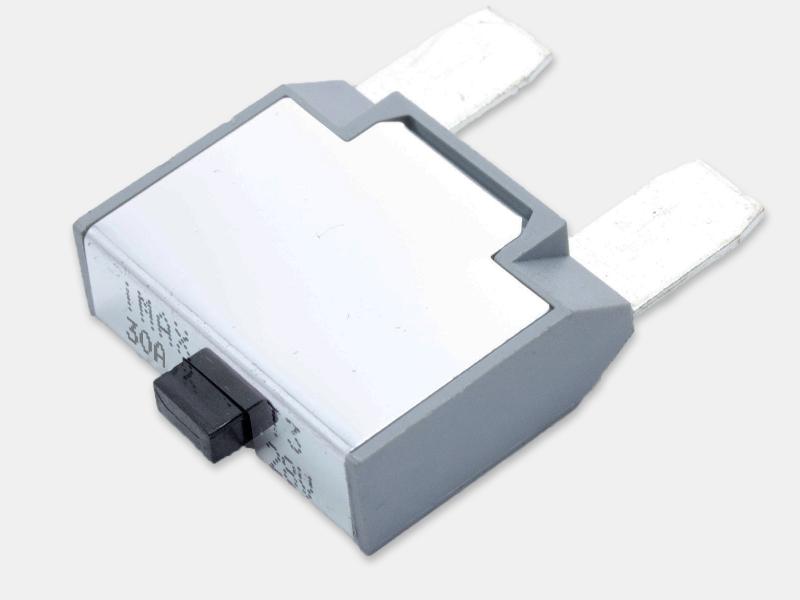

Modified resetMaxi blade fuse replacement
Voltage Rating28VDC
Current Rating10A to 50A
Interrupt Rating 500A DC
Features and Application
- Recommended for most commercial applications where downtime can be costly and resettability is needed.
- Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Maxi style blade fuse, such as the OptiFuse APX and ANX series.
- Designed to fit in any Maxi style blade fuse holder, fuse block, and power distribution modules (PDMs).
Dimensions and 3D view
Dimensions
Length1.16
Height0.36
Width1.42
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.16
Height0.36
Width1.42
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
