Key Specifications and Ratings

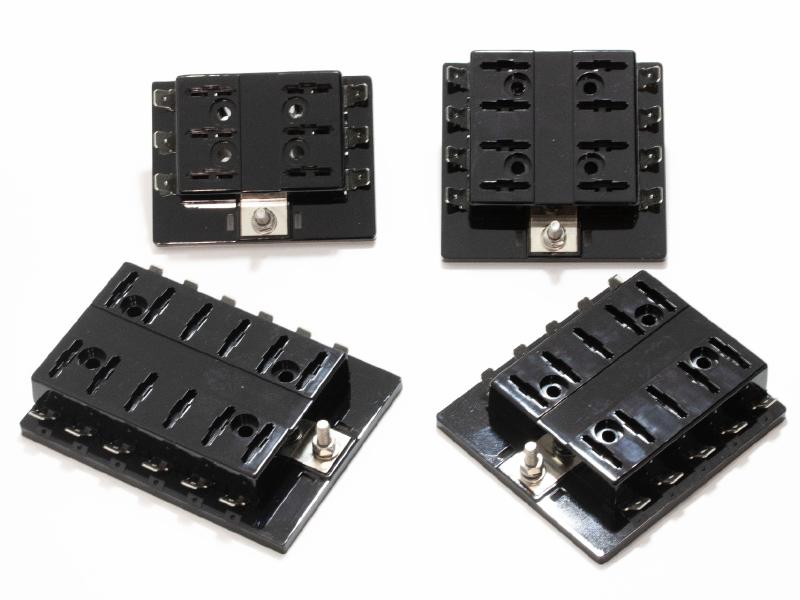

Consolidates 6 circuitsQuick connect input terminalsOptional cover availableRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)25A
Current Rating (Max Input)100A
Features and Application
- Used to distribute power to automotive electrical systems and provide compact circuit protection for 6 circuits with Regular (ATO/ATC style) blade fuses.
- The rated current is 25A per position and 100A total for the fuse block.

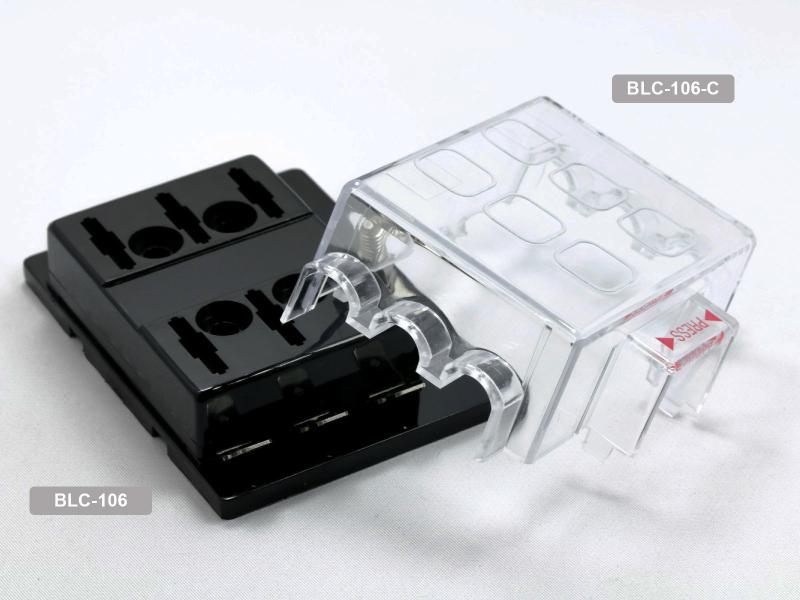

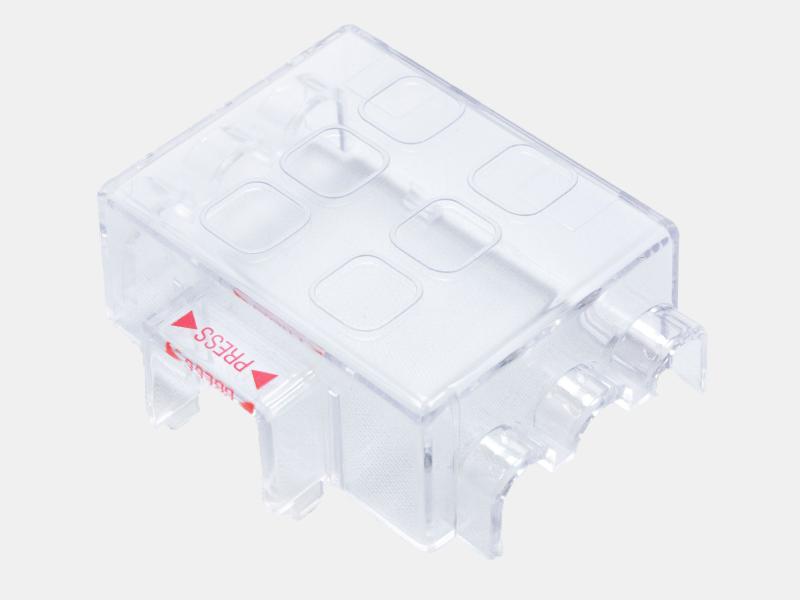

- BLC-106-C insulating cover is available to protect against accidental short circuits, as well as from dirt, dust, and splashes.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length2.51
Height0.83
Width3.36
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.51
Height0.83
Width3.36
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
