Key Specifications and Ratings
Consolidates 6 circuitsCompact designComes with clear, insulating coverRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

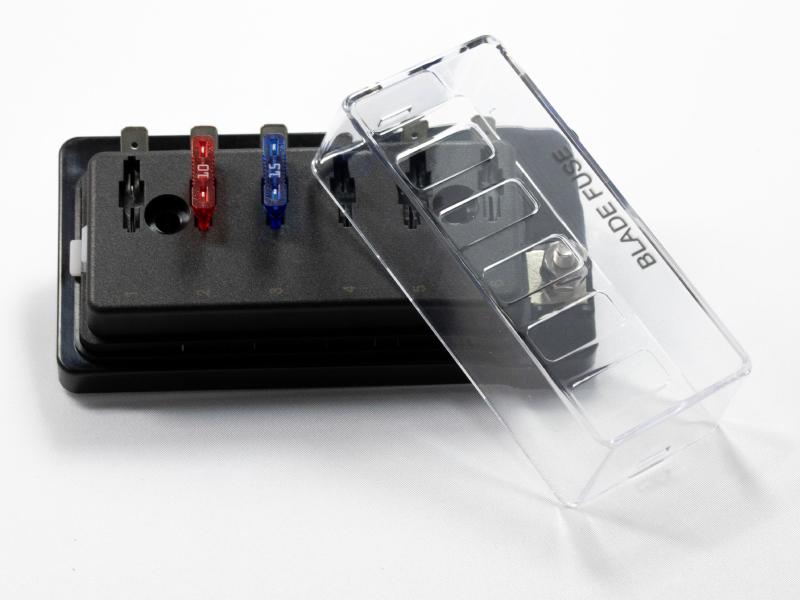

  • Compact 6 positions fuse block for Regular (ATO/ATC style) blade fuses, with a rated current of 30A per position and 100A total for the fuse block.
  • With single side design that allows wire entry from one side to minimize the block’s footprint.
  • Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
  • NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length4.76
Height1
Width2.46
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length4.76
Height1
Width2.46
UnitInch
