Key Specifications and Ratings
Upgradable with clear, insulating coverDesigned for heavy duty loadsMounting slots molded on
Voltage Rating125VAC
Current Rating800A
Features and Application

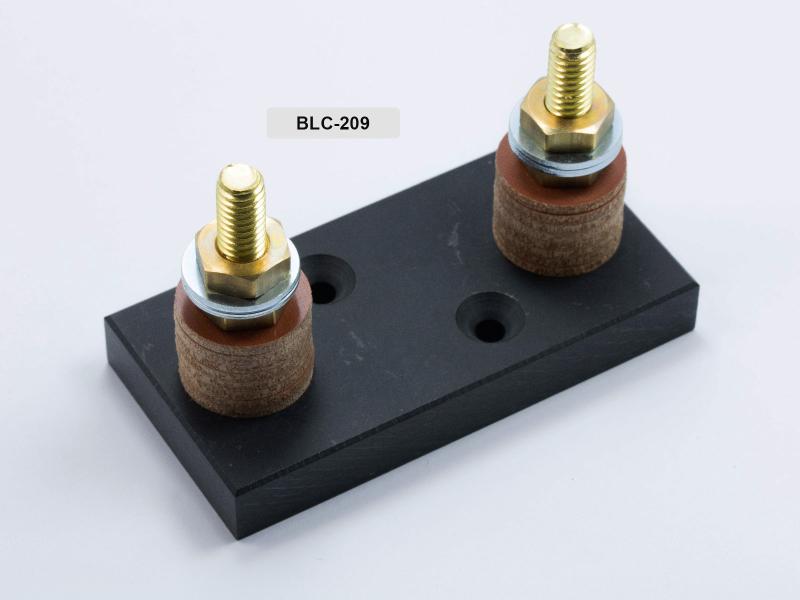

- Rated up to 800A, this is our highest rated fuse block, and it mounts the OptiFuse ANE / ANF limiter fuses and accepts 5/16" (M8) ring terminals.
- Designed for large power system requirements where amperage and/or voltage needs are high.

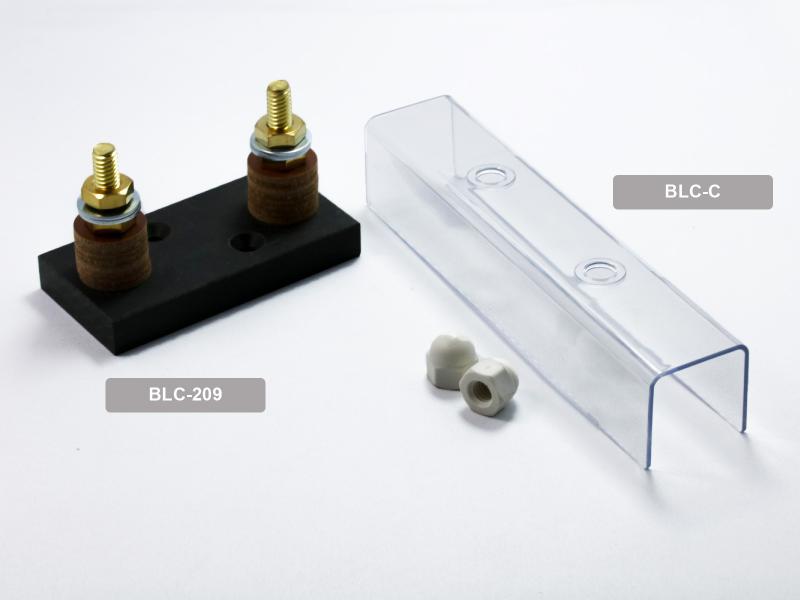

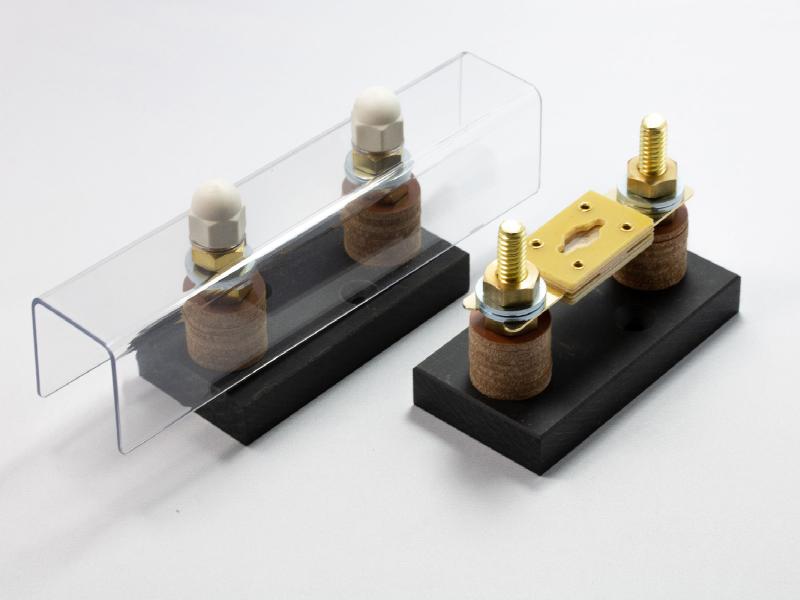

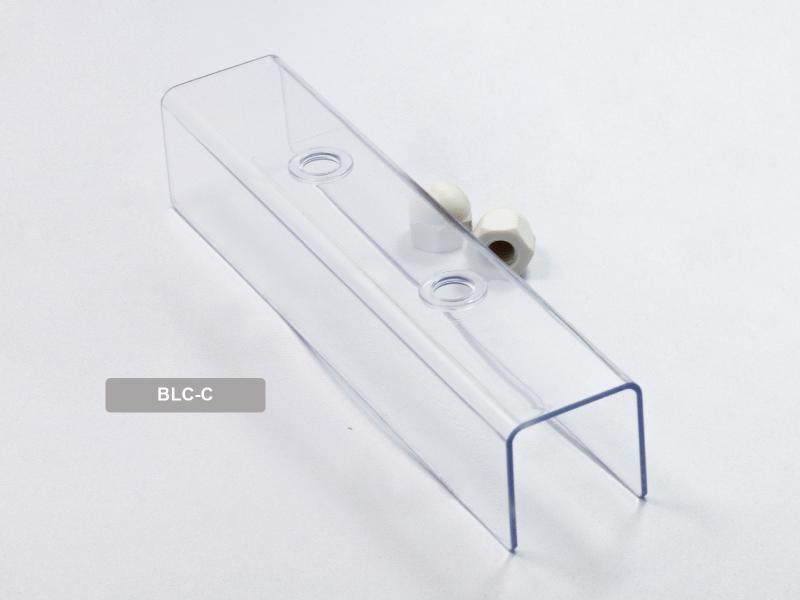

- This fuse blocks can be upgraded with a BLC-C clear plastic cover that protects against accidental short circuits and prevents anything from accidentally touching the exposed terminal studs.
Dimensions and 3D view
Dimensions
Length3.55
Height2.27
Width1.74
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.55
Height2.27
Width1.74
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
