Key Specifications and Ratings
Spring bronze or phosphor-bronze pinsWith end stops
Voltage Rating300VAC 160VDC
Current Rating30A to 40A
Features and Application
- Built for use with midget 10mm x 38mm (13/32" x 1-1/2") fuses and designed to fit UL Class M supplemental fuses and UL Class CC fuses.
- Most economical method to mount glass and ceramic fuses on a printed circuit board (PCB), with tin-plated mounting pins for easy soldering and end stops for easy fuse installation.
- Configured with a spring bronze base material that is compatible with fuses up to 30A, while phosphor bronze base fuse clips accept fuses up to 40A.

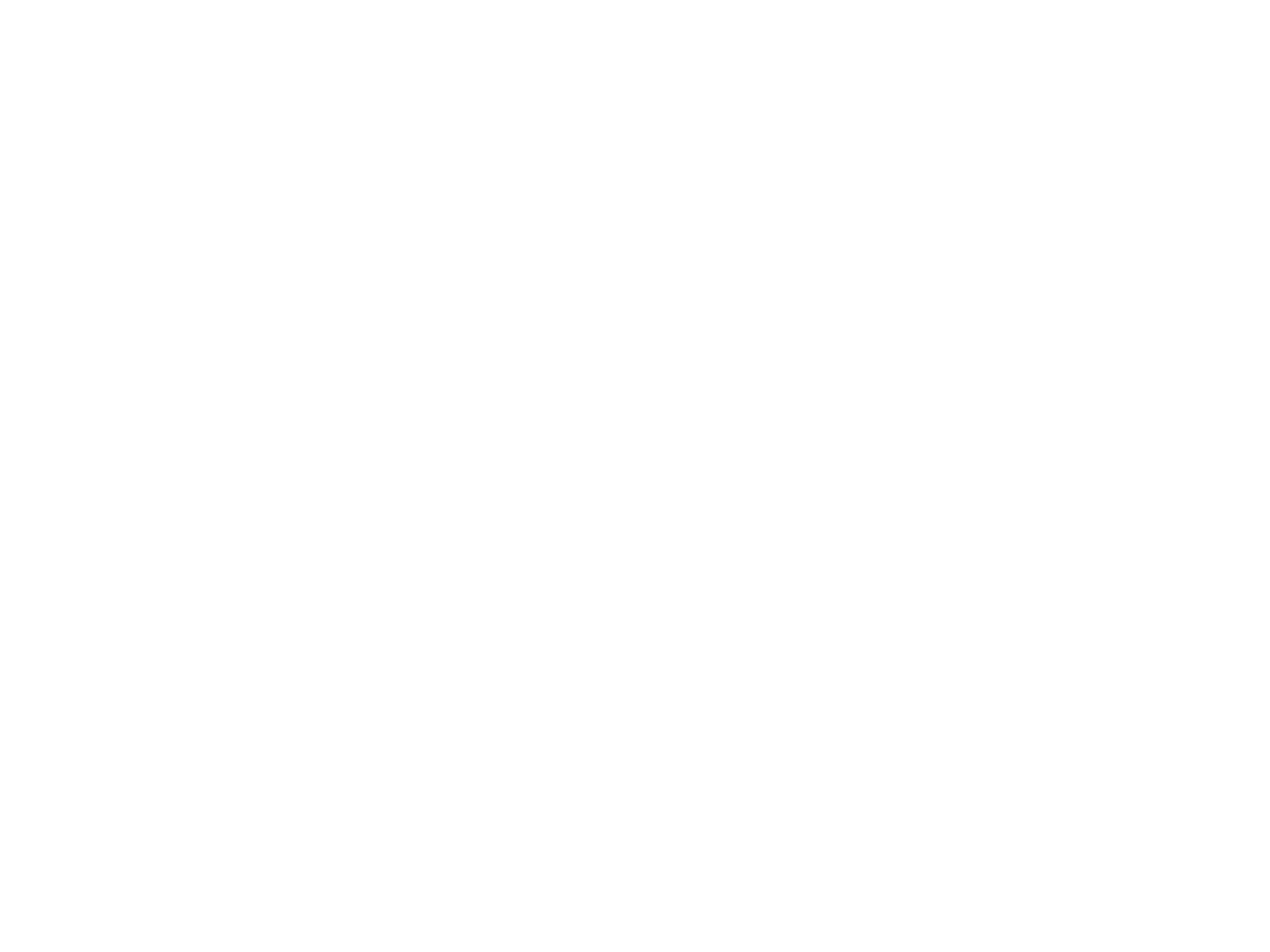

Dimensions and 3D view
Dimensions
Length0.88
Height0.44
Width0.48
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.88
Height0.44
Width0.48
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
