Key Specifications and Ratings
Consolidates 12 circuitsQuick connect input terminalsOptional cover available
Voltage Rating32VDC
Current Rating (Per Circuit)25A
Current Rating (Max Input)100A
Features and Application

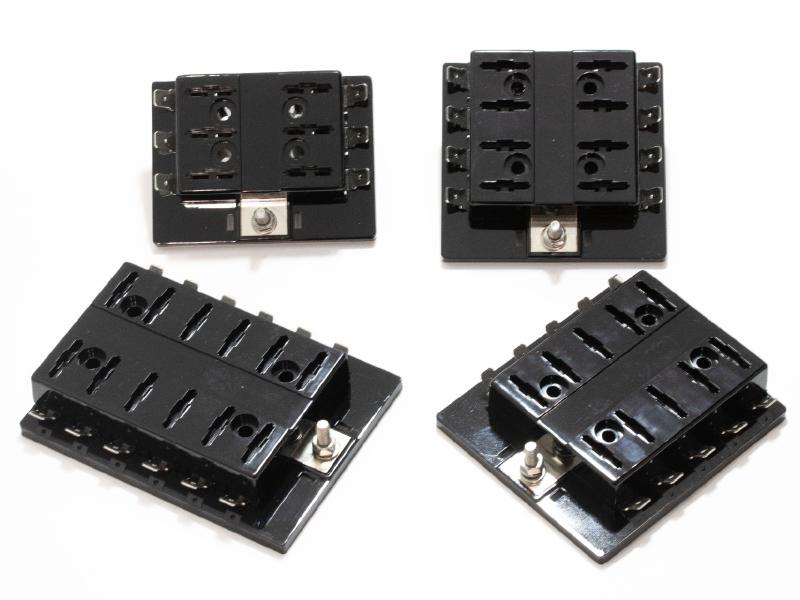

  • Used to distribute power to automotive electrical systems and provide compact circuit protection for 12 circuits with Regular (ATO/ATC style) blade fuses.
  • The rated current is 25A per position and 100A total for the fuse block.

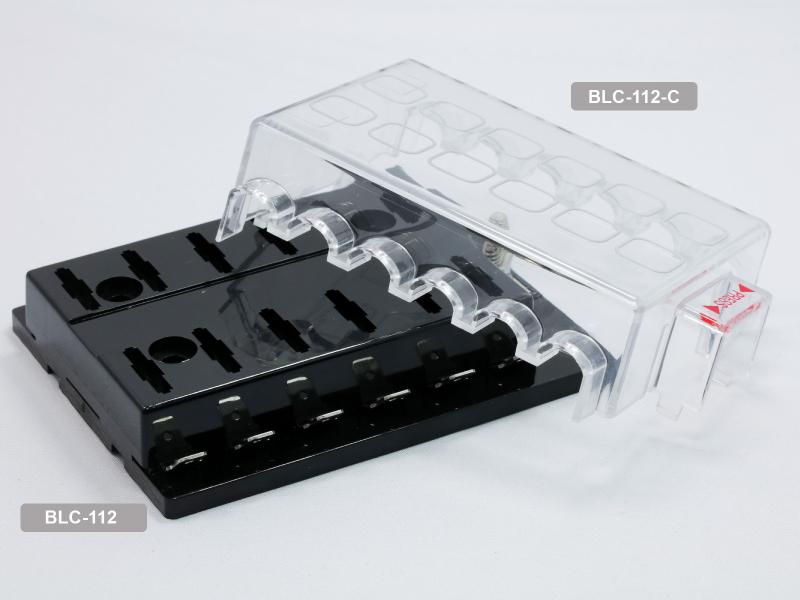

  • BLC-112-C insulating cover is available to protect against accidental short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length4.39
Height0.83
Width3.36
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length4.39
Height0.83
Width3.36
UnitInch
