Key Specifications and Ratings
Consolidates 6 circuitsWith ground busSpace-saving compact design
Voltage Rating80VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
- BLR-1206-G supplies power and grounding to 6 circuits in one compact fuse block of Regular (ATO/ATC style) blade fuses. Provides a significant size reduction compared to other blocks with similar features.

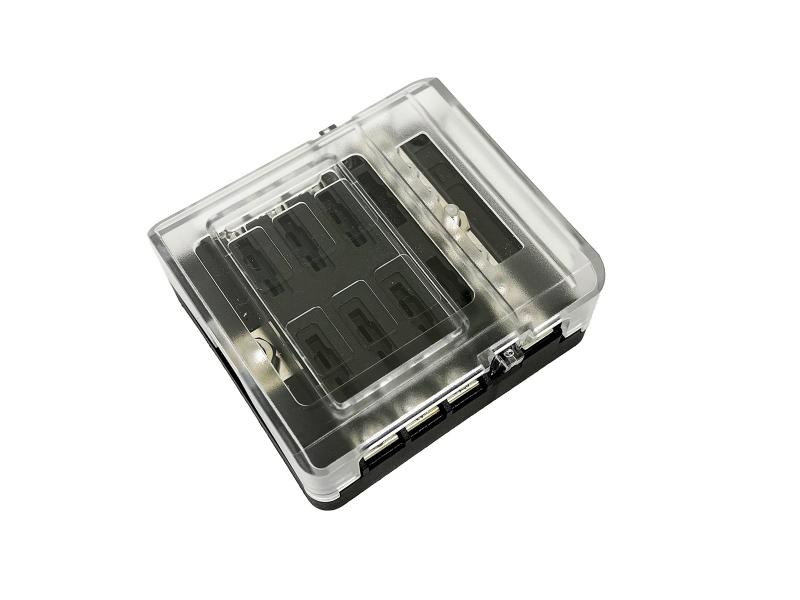

- Designed with screw terminals for secure wiring, which is especially beneficial in emergency vehicles, and comes with an insulating cover that offers protection against short circuits, dirt, dust, and splashes.
- Comes with storage for 2 spare fuses.
Dimensions and 3D view
Dimensions
Length3.64
Height1.42
Width3.33
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.64
Height1.42
Width3.33
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
