Key Specifications and Ratings
Comes with clear, insulating coverSpace-saving compact sizeMounting slots molded onRetail Pack Quantity: 1PC
Voltage Rating58VDC
Current Rating300A
Features and Application

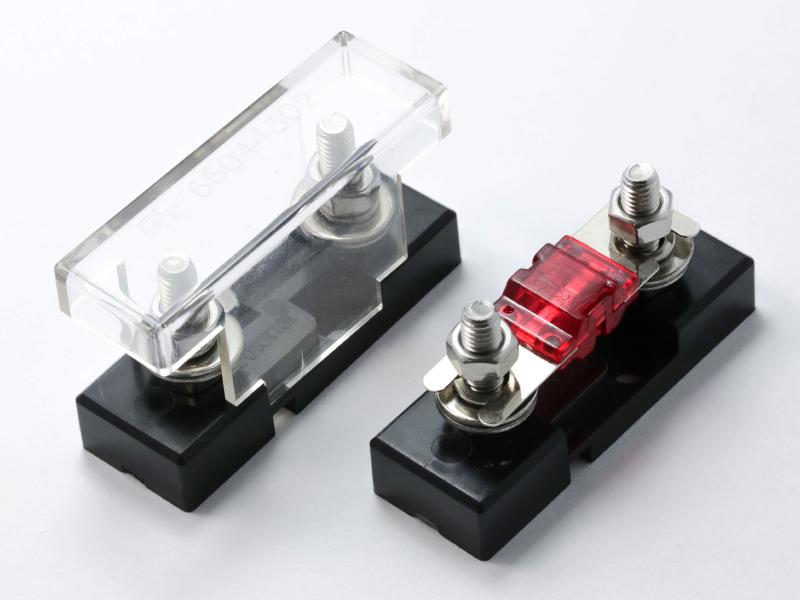

- Designed for MID / MIDA bolt-on fuses rated up to 300A, this block accepts M5 ring terminals.
- It comes with a snap-in clear plastic cover that protects against accidental short circuits and prevents anything from accidentally touching the exposed terminal studs.
- Compact and cost-effective circuit protection system for high-current, low-voltage DC applications.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length2.16
Height0.78
Width0.75
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.16
Height0.78
Width0.75
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
