Key Specifications and Ratings
Comes with insulating coverInterlocking pins to create a multi-fuse blockMounting brackets molded on
Voltage Rating32VDC
Current Rating100A
Features and Application

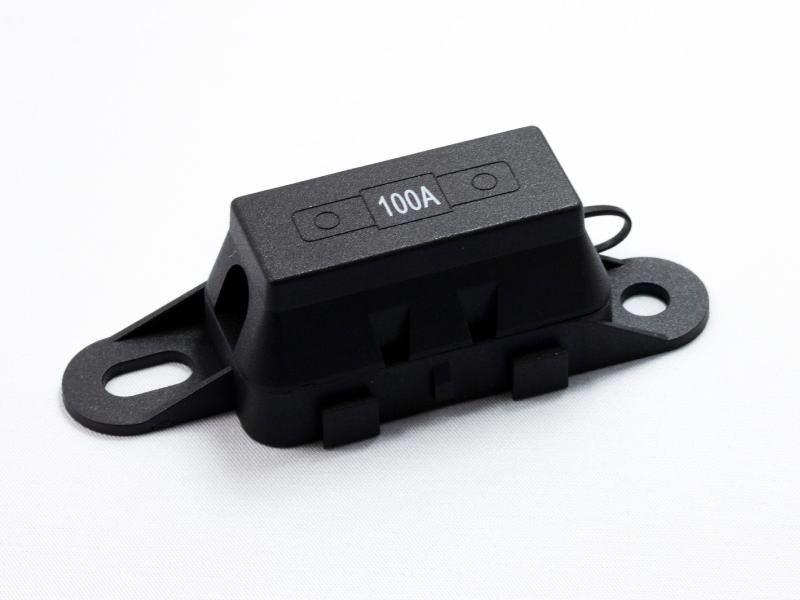

- Designed for MID / MIDA bolt-on fuses rated up to 100A, this block accepts M5 ring terminals.
- Its insulating cover protects against accidental short circuits and prevents anything from accidentally touching the exposed terminal studs.
- Interlocking pins on the sides and a flexible cover allow for connecting additional BLC-06 fuse blocks to create a multi-fuse block.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLC-06B.png)
Dimensions
Length3.54
Height1.02
Width1.16
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLC-06B.png)
Dimensions
Length3.54
Height1.02
Width1.16
UnitInch
