Fuse Block - MIDI Style - Interlocking Pins
Contact Sales
Find a DistributorKey Specifications and Ratings
Comes with insulating coverInterlocking pins to create a multi-fuse blockMounting slots molded on
Voltage Rating80VDC
Current Rating200A
Features and Application
- Designed for MID / MIDA bolt-on high-amperage fuses rated up to 200A, this block accepts M5 ring terminals.

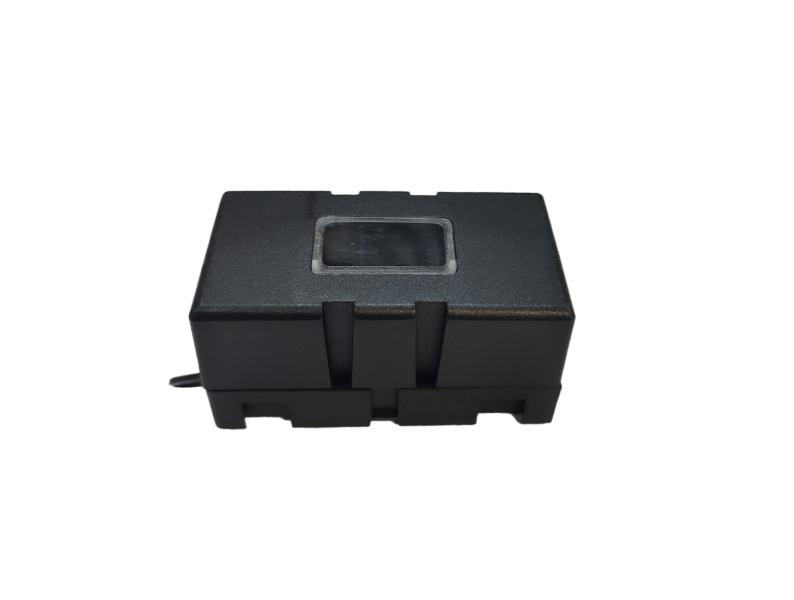

- Comes with an insulating cover with a clear window that is tethered to the base of the block, protecting against accidental short circuits, and preventing anything from accidentally touching the exposed terminal studs.
- Interlocking pins on the sides allow for connecting additional BLC-61 fuse blocks to create a multi-fuse block.
Dimensions and 3D view
Dimensions
Length2.05
Height0.98
Width1.16
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.05
Height0.98
Width1.16
UnitInch
